Data sheet

Warranty Parts	3 years

Description

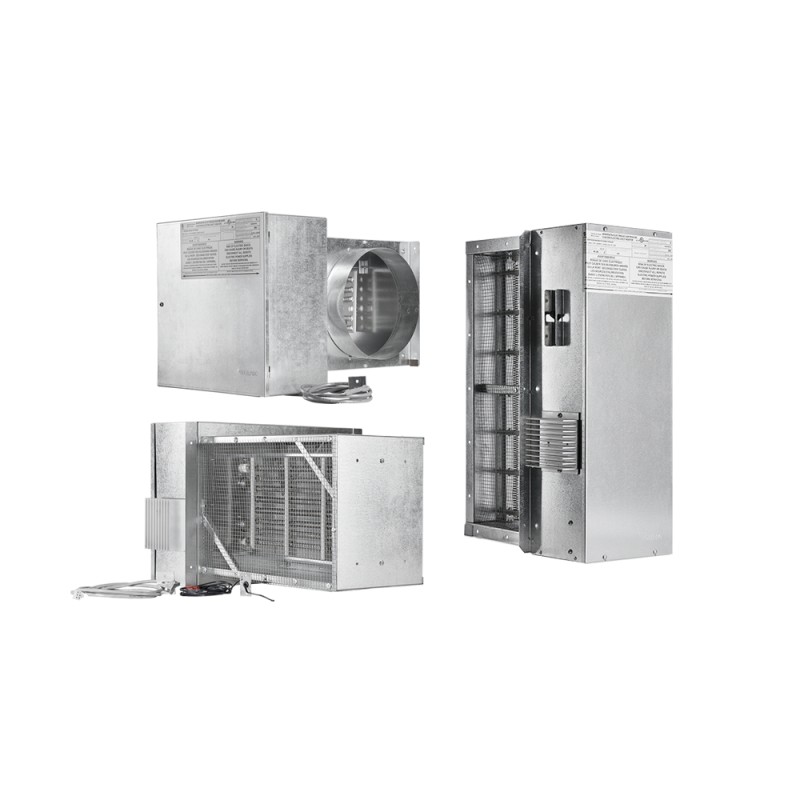

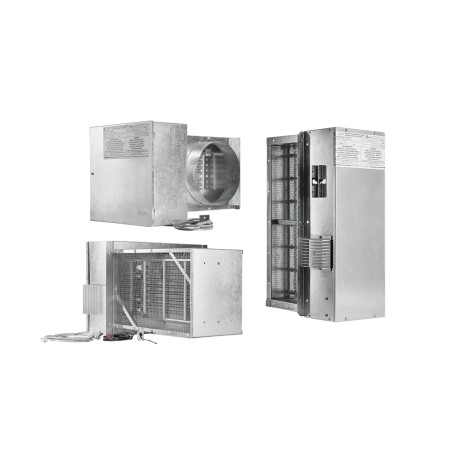

As practical as they are efficient, duct heaters supply the energy required to raise a room's temperature to the desired setpoint. Their modulation system and temperature sensor deliver precise and efficient performance, while their modular design makes for easy installation and maintenance. Customize your ventilation system with our standard or custom duct heaters.

FINISH

20 to 16 gauge galvanized steel cabinet resistant to corrosion

MANUFACTURING

Junction box door
Double thermal protections (manual and automatic)
Neoprene gasket (optional)
Nema 4, Nema 4x and Nema 12 control box (optional)
Stainless steel element housing (optional)

ELEMENTS

Open, nichrome elements
Tubular in Incoloy 800
Modulation of the elements by SCR technology to maintain a constant temperature using only the required energy

CONTROL

Built-in temperature limit sensor (TT option)
Electronic air velocity sensor (P option)
For more electronic control and card options, see the options and controls table
Control voltage: 0-10 V, 2-10 V (4-20mA), 24Vac (PWM), 24Vdc
Heater interlock included

INSTALLATION

Round duct starting at 4 in. (SDHR model)
Rectangular duct starting at 6 in. x 6 in. (SDHI and SDHF models)
Vertical, horizontal, upflow or downflow position
“Zero inch” clearance from flammable materials

WARRANTY

Three years
